Brand New

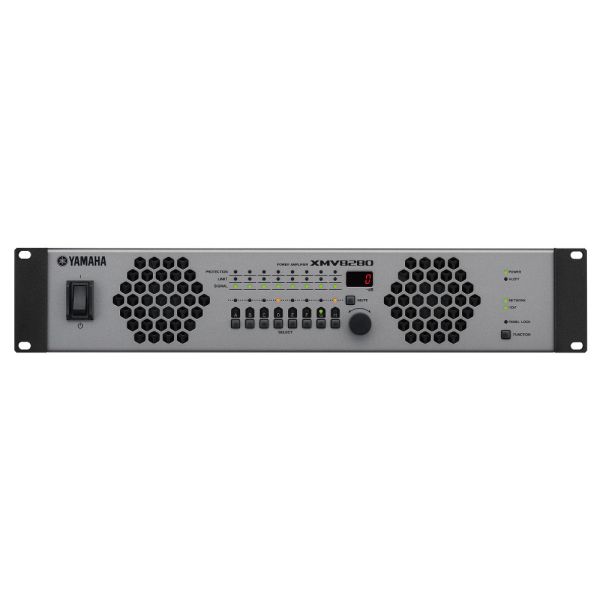

Yamaha XMV8280 8-Channel Power Amplifier
Color: Silver
Play Product Video
Power Amplifier
SELLING PRICE
$3,821.95
Availability:
In stock
SKU
XMV8280 8-Channel Power Amplifier
MSRP: $4,299.99
YOU SAVE: $478.04
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Specifications:
Output Power:
1kHz (THD+N=1%: 4Ω)1kHz (THD+N=1%: 8Ω): 280W x 4
1kHz (THD+N=1%: 4Ω / Double Power Mode): 280W x 4
1kHz (THD+N=1%: 8Ω / Double Power Mode): 560W x 2
High Impedance: 100V line: 560W x 2
High Impedance: 70V line: 250W x 4 / 40 Ω
Voltage Gain:
RL=8Ω: 31.7dB
RL=8Ω / Double Power Mode: 34.7dB
100V: 38.2dB
70V: 35.2dB
Power Consumption: 1/8 power (4 Ω pink noise):250W, Idle (4 Ω):37W, Standby:18.5W
Total Harmonic Distortion: ≤ 0.2% (1kHz, half power)
Frequency Response: 0dB, ±1.0dB (RL=8Ω, 100V/70V, Po=1W, 20Hz - 20kHz)
S/N ratio: ≥ 100dB(A-weighted)
Crosstalk: ≤ -60dB
Input Sensitivity: +4dBu
Input Impedance:20kΩ (balanced), 10k Ω (unbalanced)
I/O Connectors:
Analog I/O: Input: Euroblock x 2 (6P, balanced)
Digital I/O: RJ45 x 2 (YDIF IN / OUT)
Speaker Output: Barrier strip x 4 pairs
Control Ports: Remote, Fault Output : Euroblock (3P) x 1 Network: RJ45 x 1
Others: AC Inlet x 1
Input Level: +24dBu (Maximum)
Protection Circuit:
Load Protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
Amplifier Protection: Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically), Overcurrent: Output Mute (Restored
Automatically), Low Load Impedance: Output mute (Restored automatically)
Power Supply Protection: Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C)
Integrated Power: Gain reduction (Restored automatically)
Cooling: 3-Speed fan x 2, front-to-back airflow
Power Requirements: 100V, 120V, 230V-240V; 50Hz/60Hz
Dimensions (WxHxD): 18.9 x 3.5 x 16.6" (480 x 88 x 422mm)
Net Weight: 17.9Lbs (8.1kg)
Output Power:
1kHz (THD+N=1%: 4Ω)1kHz (THD+N=1%: 8Ω): 280W x 4
1kHz (THD+N=1%: 4Ω / Double Power Mode): 280W x 4
1kHz (THD+N=1%: 8Ω / Double Power Mode): 560W x 2
High Impedance: 100V line: 560W x 2
High Impedance: 70V line: 250W x 4 / 40 Ω
Voltage Gain:
RL=8Ω: 31.7dB
RL=8Ω / Double Power Mode: 34.7dB
100V: 38.2dB
70V: 35.2dB
Power Consumption: 1/8 power (4 Ω pink noise):250W, Idle (4 Ω):37W, Standby:18.5W
Total Harmonic Distortion: ≤ 0.2% (1kHz, half power)
Frequency Response: 0dB, ±1.0dB (RL=8Ω, 100V/70V, Po=1W, 20Hz - 20kHz)
S/N ratio: ≥ 100dB(A-weighted)
Crosstalk: ≤ -60dB
Input Sensitivity: +4dBu
Input Impedance:20kΩ (balanced), 10k Ω (unbalanced)
I/O Connectors:
Analog I/O: Input: Euroblock x 2 (6P, balanced)
Digital I/O: RJ45 x 2 (YDIF IN / OUT)
Speaker Output: Barrier strip x 4 pairs
Control Ports: Remote, Fault Output : Euroblock (3P) x 1 Network: RJ45 x 1
Others: AC Inlet x 1
Input Level: +24dBu (Maximum)
Protection Circuit:
Load Protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
Amplifier Protection: Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically), Overcurrent: Output Mute (Restored
Automatically), Low Load Impedance: Output mute (Restored automatically)
Power Supply Protection: Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C)
Integrated Power: Gain reduction (Restored automatically)
Cooling: 3-Speed fan x 2, front-to-back airflow
Power Requirements: 100V, 120V, 230V-240V; 50Hz/60Hz
Dimensions (WxHxD): 18.9 x 3.5 x 16.6" (480 x 88 x 422mm)
Net Weight: 17.9Lbs (8.1kg)
