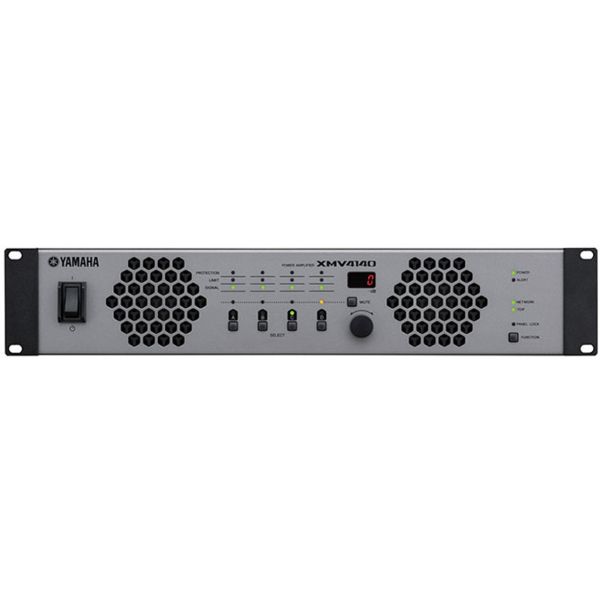

Yamaha XMV4140 140 Watts Power Amplifier, 4 Channel
Color: Silver
Play Product Video
Power Amplifier
SELLING PRICE
$1,331.95
Availability:
In stock
SKU
XMV4140 140 Watts Power Amplifier
MSRP: $1,499.99
YOU SAVE: $168.04
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
1kHz, THD+N = 1% (20 ms Burst)
4 ohms/8 ohms: 140W x 4 or 4 ohms/8 ohms Double Power Mode: 280W x 2
High impedance: 100V/70V line: 125W x 4 / 80 ohms
Voltage Gain
RL=8 ohms: 28.7dB
RL=8 ohms / Double Power Mode: 31.7dB
100V/70V: 38.2dB/35.2dB
Input Sensitivity: RL=8 ohms: +4dBu
S/N Ratio: A-weighted: ≥ 100dB
Power Consumption
1/8 power (4 ohms pink noise): 150W
Idle (4 ohms): 37W
Standby: 18.5W
THD+N: 1kHz, half power: ≤ 0.2%
Frequency Response: RL=8 ohms, 100V/70V, Po=1W, 20Hz - 20kHz: 0dB, +/-1.0dB
Crosstalk: 1kHz, half power, 8 ohms, Att. max, input 150 ohms shunt: ≤ -60dB
Maximum Input Level: +24dBu
Input Impedance: 20k ohms (balanced), 10k ohms (unbalanced)
Connectors
Analog Input: Euroblock x 2 (6P, balanced)
Digital Input / Output: RJ45 x 2 (YDIF IN / OUT)
Speaker Output: Barrier strip x 4 pairs
Network: RJ45 x 1
Remote, Fault Output: Euroblock (3P) x 1
AC IN:AC Inlet x 1
Protection circuit
Load Protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
Amplifier Protection: Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically)
Power Supply Protection: Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C), Integrated power: Gain reduction (Restored automatically)
Power Requirements: 100V, 120V, 230V-240V; 50Hz/60Hz
Dimensions: W 480mm (18.9") x H 88mm (3.5") x D 422mm (16.6")
