Brand New

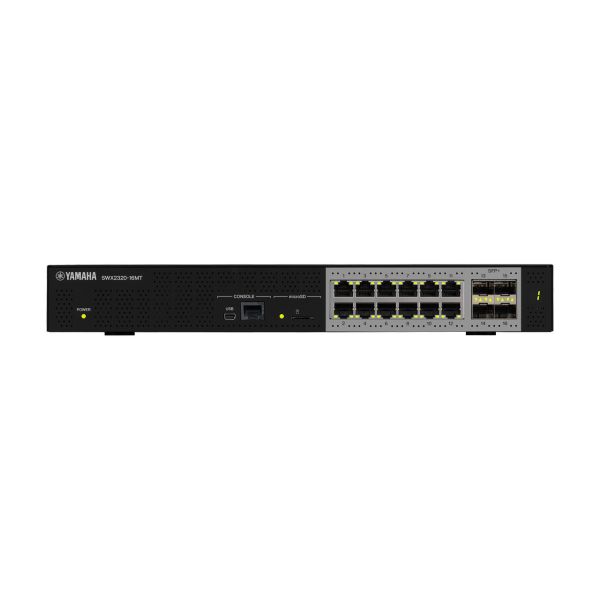

Yamaha SWX2320-16MT
Color: Black
L2 MultiGigabit Network Switch
SELLING PRICE
$1,830.95
Availability:
In stock
SKU
Yamaha SWX2320-16MT
MSRP: $2,099.00
YOU SAVE: $268.05
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
LAN ports
Standard: IEEE802.3 (100BASE-TX/ 1000BASE-T/ 2.5GBASE-T/ 5GBASE-T/ 10GBASE-T)
Number of ports: 12
Communication mode: Auto negotiation
Connector type: RJ-45
Polarity: Automatic detection of straight/cross, or fixed at straight
SFP+ ports
Standard: IEEE 802.3z (1000BASE-SX/ 1000BASE-LX), IEEE 802.3ae (10GBASE-SR/ 10GBASE-LR)
Number of ports: 4
Power supply voltage, frequency: AC100 - 240V, 50/60Hz
Maximum power consumption: 84W
Console ports
Standard: RS-232C, USB 2.0
Connector type: 9600 (default value) / 19200/ 38400/ 57600/ 115200 bit/s
microSD slot
Standard: microSD/microSDHC
File System: FAT/FAT32
Indicators: POWER, microSD, STACK ID, LAN port (LINK/ ACT, SPEED), SFP+ port (LINK/ ACT, SPEED)
MAC address: Indicated in product label on top panel of unit
Number of fans: 3
Operating environment: Ambient temperature: 0-50 °C, Ambient humidity 15-80% (non-condensing)
Storage environment: Ambient temperature: -20-60 °C, Ambient humidity 10-90% (non-condensing)
Dimensions
W: 330 mm
H: 44 mm
D: 250 mm
Standard: IEEE802.3 (100BASE-TX/ 1000BASE-T/ 2.5GBASE-T/ 5GBASE-T/ 10GBASE-T)
Number of ports: 12
Communication mode: Auto negotiation
Connector type: RJ-45
Polarity: Automatic detection of straight/cross, or fixed at straight
SFP+ ports
Standard: IEEE 802.3z (1000BASE-SX/ 1000BASE-LX), IEEE 802.3ae (10GBASE-SR/ 10GBASE-LR)
Number of ports: 4
Power supply voltage, frequency: AC100 - 240V, 50/60Hz
Maximum power consumption: 84W
Console ports
Standard: RS-232C, USB 2.0
Connector type: 9600 (default value) / 19200/ 38400/ 57600/ 115200 bit/s
microSD slot
Standard: microSD/microSDHC
File System: FAT/FAT32
Indicators: POWER, microSD, STACK ID, LAN port (LINK/ ACT, SPEED), SFP+ port (LINK/ ACT, SPEED)
MAC address: Indicated in product label on top panel of unit
Number of fans: 3
Operating environment: Ambient temperature: 0-50 °C, Ambient humidity 15-80% (non-condensing)
Storage environment: Ambient temperature: -20-60 °C, Ambient humidity 10-90% (non-condensing)
Dimensions
W: 330 mm
H: 44 mm
D: 250 mm
