Brand New

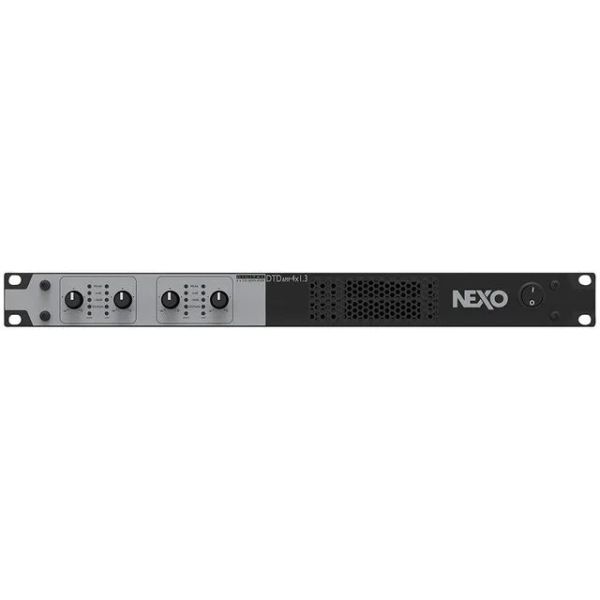

Yamaha DTDAMP4X1.3 Nexo Power Amplifier 1300W x 4
Color: Black
Power Amplifier
SELLING PRICE
$1,797.95
Availability:
In stock
SKU
DTDAMP4X1.3 Nexo Power Amplifier 1300W x 4
MSRP: $2,247.00
YOU SAVE: $449.05
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Number of Channels 4 x amplifiers channel, 2 by 2 bridgeable
Maximum Output Voltage (No Load) 4 x 135 volts
Maximum Output Power (4 x 8 Ohms) 4 x 750 watts
Maximum Output Power (4 x 4 Ohms) 4 x 1300 watts
Maximum Output Power (2 Bridge x 8 Ohms) 2 x 2600 watts
Frequency Response 20 Hz - 20 kHz (+/- 0.5 dB)
Input Impedance 10 kOhms
Input Sensitivity +8 dBU
Nominal Gain 32 dB
Dynamic Range (A-Weighted) > 110 dB
Analog Audio Inputs 4 x balanced analog inputs on XLR
Power Outputs 4 x SP4 (Speakon) outputs
Link Switch To use same XLR input for 2 x adjacent channels
Mains Sockets IEC C14 Inlet with secure lock
Switch and Knobs Mains On/Off switch and volume control knob per channel
View Meters 4 x LEDs (signal / -18 dB / -6 dB / Peak) per channel
Amplifier Status Amp Ready and Temperature indicator per channels pairs
Mains Voltage Factory set for 120 volts of 230 volts mains operation
Power Consumption (Idle) 65 watts
Power Consumption (1/8 max. / 4 Ohms) 900 watts
Power Consumption (1/4 max. / 4 Ohms) 1800 watts
Dimensions (H x W x D) 1.7" (44 mm) x 18.9" (480 mm) x 14.6" (370 mm)
Maximum Output Voltage (No Load) 4 x 135 volts
Maximum Output Power (4 x 8 Ohms) 4 x 750 watts
Maximum Output Power (4 x 4 Ohms) 4 x 1300 watts
Maximum Output Power (2 Bridge x 8 Ohms) 2 x 2600 watts
Frequency Response 20 Hz - 20 kHz (+/- 0.5 dB)
Input Impedance 10 kOhms
Input Sensitivity +8 dBU
Nominal Gain 32 dB
Dynamic Range (A-Weighted) > 110 dB
Analog Audio Inputs 4 x balanced analog inputs on XLR
Power Outputs 4 x SP4 (Speakon) outputs
Link Switch To use same XLR input for 2 x adjacent channels
Mains Sockets IEC C14 Inlet with secure lock
Switch and Knobs Mains On/Off switch and volume control knob per channel
View Meters 4 x LEDs (signal / -18 dB / -6 dB / Peak) per channel
Amplifier Status Amp Ready and Temperature indicator per channels pairs
Mains Voltage Factory set for 120 volts of 230 volts mains operation
Power Consumption (Idle) 65 watts
Power Consumption (1/8 max. / 4 Ohms) 900 watts
Power Consumption (1/4 max. / 4 Ohms) 1800 watts
Dimensions (H x W x D) 1.7" (44 mm) x 18.9" (480 mm) x 14.6" (370 mm)
