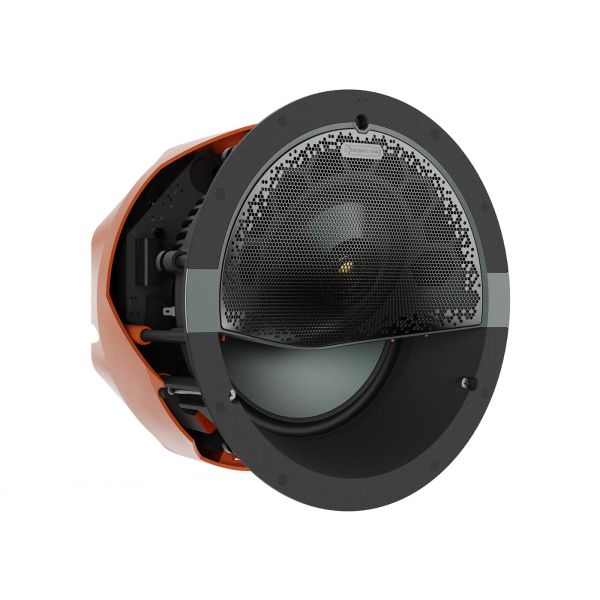

Monitor Audio Creator C3L-A
Color: Black
Play Product Video
Angled In-Ceiling Speaker
SELLING PRICE
$859.95
Availability:
In stock
SKU
MonitorAudio_C3L-A
MSRP: $1,500.00
YOU SAVE: $640.05
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Regardless of the color of the drivers and enclosure, the only visible parts - once installed - will be white (white grille and trim, if this item is trimmed).
C3L-A
The tweeter and midrange sit at a fixed 23 degree angle, so they're perfect for front LCR positions, as well as being useful for Atmos and surround (in certain rooms that can make appropriate use of the fixed angle).
This large Tier 3 in-ceiling loudspeaker is a three-way model with an angled IDC II driver array that focuses sound mid-range and high-frequency sound into the listening area for improved clarity. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.
The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.
Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.
It has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grille can be used with this model.
System Format
3–Way
Channels
1
Frequency Response, Installed (-6dB)
45 Hz – 35 kHz
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.6 Ohm @ 2 kHz
Sensitivity (2.83Vrms@1m, Installed)
89 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
119 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
60 – 225 W
Drive Unit Complement
1 x 9" (229 mm) RDT III bass driver
1 x 4" (102 mm) IDC II midrange driver
1 x 1" (25 mm) IDC II tweeter
Crossover Frequency
LF/MF: 700 Hz
MF/HF: 3 kHz
Mounting Depth
157 mm (63/16")
Cut-Out Hole Diameter
248 mm (9 3/4")
External Dimensions (Including Grille (H x W x D))
278 x 278 x 161 mm (10 15/16 x 10 15/16 x 6 5/16")
Weight (each)
5.1 kg (11 lb 3 oz)
Matt black
Sold As
Single Unit
Corner Switch
On/Off
HF Switch
- /0/ +
MF Switch
- /0/ +
The tweeter and midrange sit at a fixed 23 degree angle, so they're perfect for front LCR positions, as well as being useful for Atmos and surround (in certain rooms that can make appropriate use of the fixed angle).
This large Tier 3 in-ceiling loudspeaker is a three-way model with an angled IDC II driver array that focuses sound mid-range and high-frequency sound into the listening area for improved clarity. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.
The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.
Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.
It has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grille can be used with this model.
System Format
3–Way
Channels
1
Frequency Response, Installed (-6dB)
45 Hz – 35 kHz
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.6 Ohm @ 2 kHz
Sensitivity (2.83Vrms@1m, Installed)
89 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
119 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
60 – 225 W
Drive Unit Complement
1 x 9" (229 mm) RDT III bass driver
1 x 4" (102 mm) IDC II midrange driver
1 x 1" (25 mm) IDC II tweeter
Crossover Frequency
LF/MF: 700 Hz
MF/HF: 3 kHz
Mounting Depth
157 mm (63/16")
Cut-Out Hole Diameter
248 mm (9 3/4")
External Dimensions (Including Grille (H x W x D))
278 x 278 x 161 mm (10 15/16 x 10 15/16 x 6 5/16")
Weight (each)
5.1 kg (11 lb 3 oz)
Matt black
Sold As
Single Unit
Corner Switch
On/Off
HF Switch
- /0/ +
MF Switch
- /0/ +
