Brand New

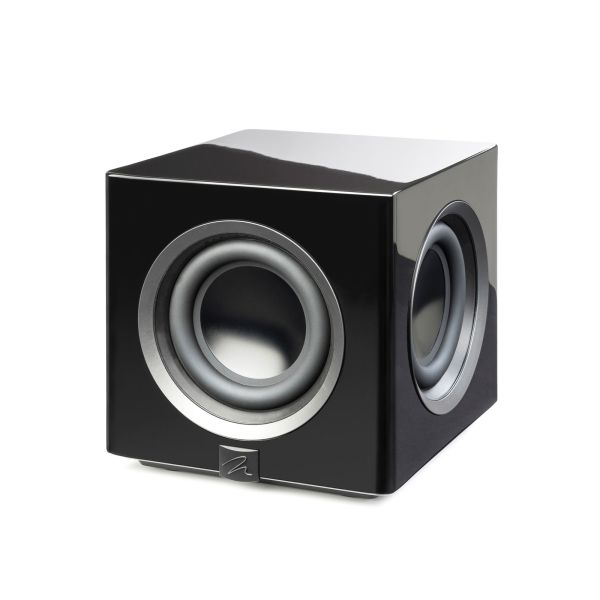

MartinLogan Abyss 8 Subwoofer
Play Product Video
Subwoofer
SELLING PRICE
$1,099.95
Availability:
In stock
SKU
Abyss 8
MSRP: $1,199.99
YOU SAVE: $100.04
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Application
Subwoofer
Frequency Response
23–200 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer
Triple 8″ (20.3cm) Hybrid Woofer
System consisting of a single highexcursion, anodized-aluminum cone in a stamped steel basket with dual anodized-aluminum cone passive radiators
Amplifier
Magnitude MT-1kW Amplifier with 1,000W peak (500W continuous)
Digital Signal Processing
Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Cabinet
Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF structure with reinforced woofer baffles and center brace
Controls (on backplate)
Level: Interactive LED Backlit Knob
Tone Sweep: Sweep Start and Pause (with status light)
Power Mode: On, 12v Trigger, Auto
Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Controls (via Bluetooth)
Level: -40 to 12dB (Min-Max)
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Movie, Music, Night
20–30Hz Level: ±10dB
Anthem Room Correction (ARC Genesis): On, Off
Tone Sweep (120-20Hz): On, Off, Pause (Frequency)
Inputs
Line Level: Left, Right, and LFE
XLR: LFE
Speaker Level: Left and Right (requires banana plugs)
Wireless Input
Integrated Wireless Receiver, Wireless Transmitter Included
Power Draw
Max: 500W
Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined Feet
Integrated Anti-Vibration Feet (carpet spikes included)
Weight
46.7 lbs (21.2 kg)
Dimensions (HxWxD)*
13.5″ x 13.2″ x 13.2″ (34.3cm x 33.5cm x 33.5cm)
Subwoofer
Frequency Response
23–200 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer
Triple 8″ (20.3cm) Hybrid Woofer
System consisting of a single highexcursion, anodized-aluminum cone in a stamped steel basket with dual anodized-aluminum cone passive radiators
Amplifier
Magnitude MT-1kW Amplifier with 1,000W peak (500W continuous)
Digital Signal Processing
Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Cabinet
Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF structure with reinforced woofer baffles and center brace
Controls (on backplate)
Level: Interactive LED Backlit Knob
Tone Sweep: Sweep Start and Pause (with status light)
Power Mode: On, 12v Trigger, Auto
Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Controls (via Bluetooth)
Level: -40 to 12dB (Min-Max)
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Movie, Music, Night
20–30Hz Level: ±10dB
Anthem Room Correction (ARC Genesis): On, Off
Tone Sweep (120-20Hz): On, Off, Pause (Frequency)
Inputs
Line Level: Left, Right, and LFE
XLR: LFE
Speaker Level: Left and Right (requires banana plugs)
Wireless Input
Integrated Wireless Receiver, Wireless Transmitter Included
Power Draw
Max: 500W
Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined Feet
Integrated Anti-Vibration Feet (carpet spikes included)
Weight
46.7 lbs (21.2 kg)
Dimensions (HxWxD)*
13.5″ x 13.2″ x 13.2″ (34.3cm x 33.5cm x 33.5cm)
