Brand New

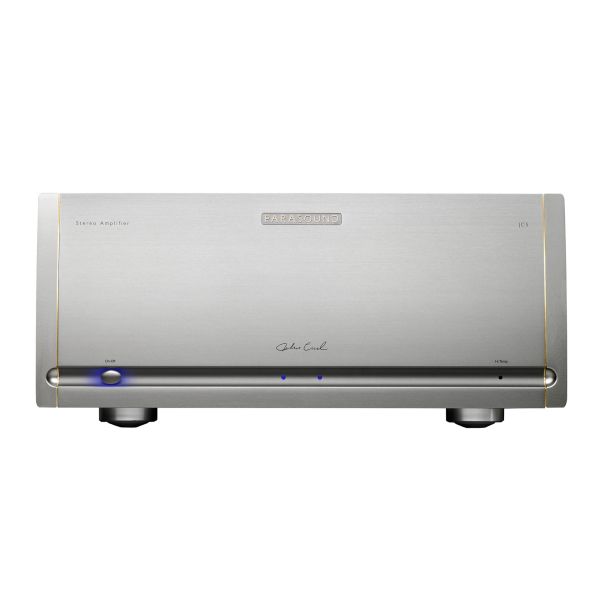

Halo by Parasound JC5 - Silver
Color: Silver
Play Product Video
2-Channel Amplifier
SELLING PRICE
$5,299.95
Availability:
In stock
SKU
JC5-Silver
MSRP: $6,499.00
YOU SAVE: $1,199.05
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
JC 5 Stereo Power Amplifier by John Curl
Specs
Power Output ? Both Channels Driven
400 watts x 2, 8 ?
600 watts x 2, 4 ? Power Output ? Bridged Mode
1200 watts x 1, 8 ?
Bridged 4 ? operation is not recommended Power measurement parameters are at 120 VAC:
0.05% THD, RMS continuous power,
full audio band (20 Hz - 20 kHz) Current Capacity
90 amps peak, per channel Slew Rate
> 130 volts per microsecond Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.25 dB Total Harmonic Distortion (THD)
< 0.05 % at full power
< 0.03 % at typical listening levels IM Distortion
< 0.04 % TIM
Unmeasurable Inter-channel Crosstalk
> 87 dB at 1 kHz
> 72 dB at 20 kHz Input Impedance
Unbalanced: 33 k?
Balanced: 66 k?,(33 k? per leg) Total Gain
29 dB Input Sensitivity for 28.28 V Output into 8 ?
Unbalanced: 1 V
Balanced: 1 V per leg S/N Ratio
> 116 dB, input shorted, IHF A-weighted
> 111 dB, input shorted, unweighted Damping Factor
1000 at 20 Hz DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA Audio Trigger Requirements
2 mV - 10 mV XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return) Dimensions
Width: 17-5?8" (448 mm)
Height without feet: 7-1?8" (181 mm)
Height with feet: 7-3/4" " (197 mm)
Depth: 20" (508 mm)
Depth with cables: 21-1?2" (546 mm) Net Weight
73 lb. (33.1 kg) Shipping Weight
90 lb. (40.8 kg) Power Requirement
Standby: 1 Watt
Idle (no music playing): 225 Watts
Typical listening levels: 400 Watts
Maximum: 1500 Watts
