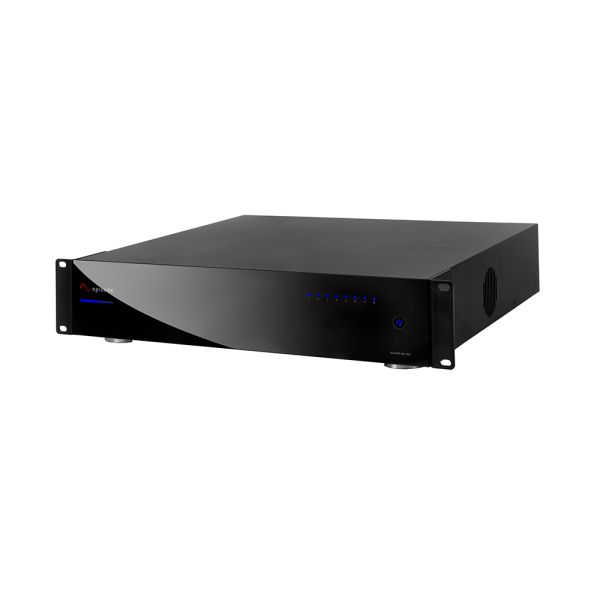

Episode Response DSP Amplifier|100W x 8 Channels
Color: Black
Play Product Video
Amplifier
SELLING PRICE
$1,829.95
Availability:
In stock
SKU
EA-RSP-8D-100
MSRP: $2,428.99
YOU SAVE: $599.04
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Channels: 8-Channel
Impedance Input: RCA analog input: 20kΩ
Power Output @ 4 ohm: 2 channels driven: 2x100W 1 kHz
All Channels: 8x100W 1 KHz
Power Output @ 8 ohm: 2 channels driven: 2x50W 1 kHz All Channels: 8x50W 1 KHz
Power Output Bridged @ 8 ohm: 4 x 200W 1 KHz
Sensitivity Input: 1 Vrms
Topology: Class D
Total Harmonic Distortion (THD): 0.01% 1 kHz @1/8 rated power 4Ω or 8Ω
Connector Type: 1 x RJ45 (ethernet), Stereo RCA inputs, 4x Analog loop output, 8 channels: 4 stereo or bridged output Speaker outputs
Fan Description: Two fans mounted, 1 each in left and right sides
Frequency Response: 20 Hz - 20 kHz < ± 2 dB
Power Connection Type: NEMA 5/15P 3 prong to IEC 60320 C13, 1.8m length
Certifications: UL, CE, FCC
Dimensions (W x H x D): 19" × 16.7" × 3.5" (483 × 424 × 89 mm) With feet: 19" × 16.7" × 4" (483 × 424 × 101 mm)
Operating Humidity: 20-90% RH
Operating Temperature: -10 to +50 °C (+14 to +122 °F) (indoor)
Power Consumption: 800W
Storage Temperature: -30 to +70 °C (-22 to +158 °F)
Weight: 18.7 lb. (8.5 kg)
Signal to Noise Ratio: >95 dB A-weighted @ rated power
Nominal Impedance: 1 ohm
RJ45 Auto Sensing: 2.5 mVrms
LED Indicators: Front power LED: 1x Blue LED light bar System status LED: 8x Bi-color LED
Watts Per Channel: 100W
Dynamic Range: > 100 dB A-weighted @ rated power
Rack Spacing: 2U
Impedance Input: RCA analog input: 20kΩ
Power Output @ 4 ohm: 2 channels driven: 2x100W 1 kHz
All Channels: 8x100W 1 KHz
Power Output @ 8 ohm: 2 channels driven: 2x50W 1 kHz All Channels: 8x50W 1 KHz
Power Output Bridged @ 8 ohm: 4 x 200W 1 KHz
Sensitivity Input: 1 Vrms
Topology: Class D
Total Harmonic Distortion (THD): 0.01% 1 kHz @1/8 rated power 4Ω or 8Ω
Connector Type: 1 x RJ45 (ethernet), Stereo RCA inputs, 4x Analog loop output, 8 channels: 4 stereo or bridged output Speaker outputs
Fan Description: Two fans mounted, 1 each in left and right sides
Frequency Response: 20 Hz - 20 kHz < ± 2 dB
Power Connection Type: NEMA 5/15P 3 prong to IEC 60320 C13, 1.8m length
Certifications: UL, CE, FCC
Dimensions (W x H x D): 19" × 16.7" × 3.5" (483 × 424 × 89 mm) With feet: 19" × 16.7" × 4" (483 × 424 × 101 mm)
Operating Humidity: 20-90% RH
Operating Temperature: -10 to +50 °C (+14 to +122 °F) (indoor)
Power Consumption: 800W
Storage Temperature: -30 to +70 °C (-22 to +158 °F)
Weight: 18.7 lb. (8.5 kg)
Signal to Noise Ratio: >95 dB A-weighted @ rated power
Nominal Impedance: 1 ohm
RJ45 Auto Sensing: 2.5 mVrms
LED Indicators: Front power LED: 1x Blue LED light bar System status LED: 8x Bi-color LED
Watts Per Channel: 100W
Dynamic Range: > 100 dB A-weighted @ rated power
Rack Spacing: 2U
