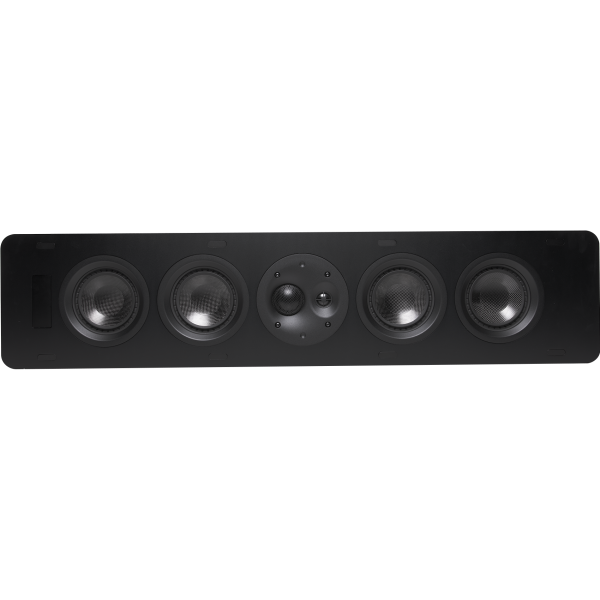

Episode Home Theater Reference Large In-Wall LCR Speaker 6"
In-Wall Speaker
SELLING PRICE
$2,379.95
Availability:
In stock
SKU
ES-HTR-IWLCR-L-6
MSRP: $3,163.99
YOU SAVE: $784.04
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Regardless of the color of the drivers and enclosure, the only visible parts - once installed - will be white (white grille and trim, if this item is trimmed).
Adjustments:Bass (0, +2dB) / Midrange (+2dB, 0, -2dB) / Tweeter (+2dB, 0, -2dB)
Connectors:Biamp / wireable gold plated 5-way binding posts
Cutout Dimensions (W x H): 10" x 48.27" (254 x 1226mm)
Dimensions (W x H x D): w/o full size grille: 11.02" x 49.21" x 4.02" (280 x 1250 x 102mm) with full size grille: 11.22" x 49.41" x 4.08" (285 x 1255 x 103.5mm)
Weight:46.9 lbs / 21.3kg (includes local grilles where applicable)
Crossover Frequency:450Hz, 2.4kHz - Linkwitz-Riley / 12dB
Speaker Dispersion Angle: 120°
Midrange:2" Aluminum dome with tuned back chamber
Dog Ear Description:Sure-Lock toggle clamp (X8)
Frequency Response:Anechoic Frequency Response: 55Hz - 25kHz (+/-3dB)
Nominal Impedance:6.0Ω
Power Peak:350W
Power RMS:175W
Sensitivity:95dB
Voice Coil:1-1/4" (31.75mm)
Mounting Depth: 3.86" (98mm)
Dog Ear Clamping Range: 3/8" (9.5mm) 1-5/8" (41.3mm)
Optimal Air Volume Behind Speaker:2.3ft³ (65 liters)
Tweeter Type:1" Aluminum dome with tuned back chamber
Woofer Type: 6-1/2" (160mm) Carbon Fiber + PVA doping & NBR surround Woofer Excursion (Peak to Peak): 8.6mm
