Brand New

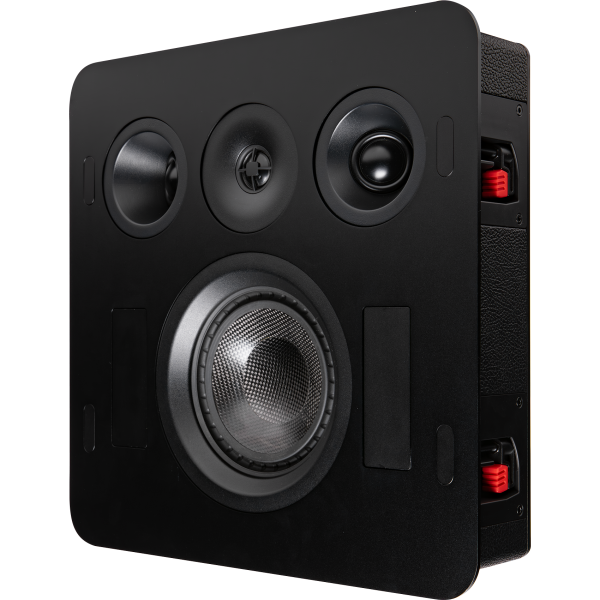

Episode Home Theater Reference In-Wall Surround Speaker 6"
Color: Black
In-Wall Speaker
SELLING PRICE
$1,699.00
Availability:
In stock
SKU
ES-HTR-IWSURR-6
MSRP: $2,259.99
YOU SAVE: $560.99
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Regardless of the color of the drivers and enclosure, the only visible parts - once installed - will be white (white grille and trim, if this item is trimmed).
Frequency Response: Anechoic Frequency Response: 60Hz - 25kHz (+/-3dB)
Connectors: Biamp / wireable gold plated 5-way binding posts
Cutout Dimensions (W x H):14.33" x 14.33" (364 x 364mm)
Dimensions (W x H x D): w/o full size girlle 15.35" x 15.35" x 4.02" (390 x 390 x 102mm) with full size grille 15.51" x 15.51" x 4.08" (394 x 394 x 103.5mm)
Weight: 19.8lbs (9.kg) (includes local grilles where applicable)
Crossover Frequency:2.0kHz - Linkwitz-Riley / 12dB. Ambience drivers - 800Hz - 8kHz
Speaker Dispersion Angle: 150°
Midrange: 1-1/4" Dome with tuned back back chamber
Nominal Impedance: 7.0Ω
Power Peak: 250W
Power RMS: 125W
Sensitivity: 90dB
Voice Coil: 1-1/4" (31.75mm)
Mounting Depth: 3.86" (98mm)
Dog Ear Clamping Range: 3/8" (9.5mm) /1-5/8" (41.3mm)
Optimal Air Volume Behind Speaker: 0.7ft³ (20 liters)
Tweeter Type: 1" Aluminum dome with tuned back chamber
Woofer Type: 6-1/2" (160mm) Carbon Fiber + PVA doping & NBR surround Woofer Excursion (Peak to Peak): 7.6mm
Dog Ear Description: Sure-Lock toggle clamp (X4)
Adjustments: Bass (0, +2dB) / Tweeter (+2dB, 0, -2dB) / Ambience (Mono-pole, Bi-pole, Di-pole, level=max/mid/min)
Connectors: Biamp / wireable gold plated 5-way binding posts
Cutout Dimensions (W x H):14.33" x 14.33" (364 x 364mm)
Dimensions (W x H x D): w/o full size girlle 15.35" x 15.35" x 4.02" (390 x 390 x 102mm) with full size grille 15.51" x 15.51" x 4.08" (394 x 394 x 103.5mm)
Weight: 19.8lbs (9.kg) (includes local grilles where applicable)
Crossover Frequency:2.0kHz - Linkwitz-Riley / 12dB. Ambience drivers - 800Hz - 8kHz
Speaker Dispersion Angle: 150°
Midrange: 1-1/4" Dome with tuned back back chamber
Nominal Impedance: 7.0Ω
Power Peak: 250W
Power RMS: 125W
Sensitivity: 90dB
Voice Coil: 1-1/4" (31.75mm)
Mounting Depth: 3.86" (98mm)
Dog Ear Clamping Range: 3/8" (9.5mm) /1-5/8" (41.3mm)
Optimal Air Volume Behind Speaker: 0.7ft³ (20 liters)
Tweeter Type: 1" Aluminum dome with tuned back chamber
Woofer Type: 6-1/2" (160mm) Carbon Fiber + PVA doping & NBR surround Woofer Excursion (Peak to Peak): 7.6mm
Dog Ear Description: Sure-Lock toggle clamp (X4)
Adjustments: Bass (0, +2dB) / Tweeter (+2dB, 0, -2dB) / Ambience (Mono-pole, Bi-pole, Di-pole, level=max/mid/min)
