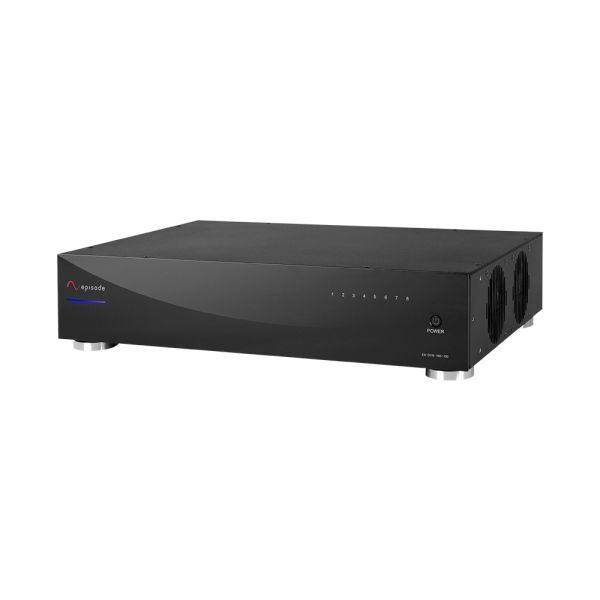

Episode Dynamic Series Class-D Amplifier|100W x 16 Channels
Color: Black
Play Product Video
Amplifier
SELLING PRICE
$1,889.95
Availability:
In stock
SKU
EA-DYN-16D-100
MSRP: $2,511.99
YOU SAVE: $622.04
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Channels: 16
Impedance Input: 20 kΩ
Power Output @ 4 ohm: 100W
Power Output @ 8 ohm: 50W
Power Output Bridged @ 8 ohm: 200W
Sensitivity Input: 0.5 - 4 Vrms
Topology: Class D
Total Harmonic Distortion (THD): < 0.05 @ 1W & 50W, 1 KHz
Frequency Response: 20Hz to 20KHz, ± 2dB at 1/8th power
Certifications: UL, CE, FCC
Color: Black
Dimensions (W x H x D): 437mm x 103mm x 310mm (17.2 in. x 4.05 in. x 12.2 in) Without feet: 437mm x 90mm x 310mm (17.2 in. x 3.55 in. x 12.2 in.)
Inputs: 1x Analog input for each channel 2x analog global inputs 1x optical 1x SPDIF global input (1x) 3.5mm 12V trigger input
Outputs: 2x Analog Loop outputs 1x Analog Sub output for each zone 1x Optical SPDIF loop output (1x) 3.5mm 12V Trigger output Sub Output: Unity gain, 2nd order LP filter at 200 Hz
Line Voltage: 115-230V AC
Weight: 14 lbs.
Rack Spacing: 2U Full Rack
Signal to Noise Ratio: > 85dB A-weighted
External Trigger Voltage: 4.5 - 12V
Watts Per Channel: 51-100W
Impedance Input: 20 kΩ
Power Output @ 4 ohm: 100W
Power Output @ 8 ohm: 50W
Power Output Bridged @ 8 ohm: 200W
Sensitivity Input: 0.5 - 4 Vrms
Topology: Class D
Total Harmonic Distortion (THD): < 0.05 @ 1W & 50W, 1 KHz
Frequency Response: 20Hz to 20KHz, ± 2dB at 1/8th power
Certifications: UL, CE, FCC
Color: Black
Dimensions (W x H x D): 437mm x 103mm x 310mm (17.2 in. x 4.05 in. x 12.2 in) Without feet: 437mm x 90mm x 310mm (17.2 in. x 3.55 in. x 12.2 in.)
Inputs: 1x Analog input for each channel 2x analog global inputs 1x optical 1x SPDIF global input (1x) 3.5mm 12V trigger input
Outputs: 2x Analog Loop outputs 1x Analog Sub output for each zone 1x Optical SPDIF loop output (1x) 3.5mm 12V Trigger output Sub Output: Unity gain, 2nd order LP filter at 200 Hz
Line Voltage: 115-230V AC
Weight: 14 lbs.
Rack Spacing: 2U Full Rack
Signal to Noise Ratio: > 85dB A-weighted
External Trigger Voltage: 4.5 - 12V
Watts Per Channel: 51-100W
