Brand New with Full Warranty!

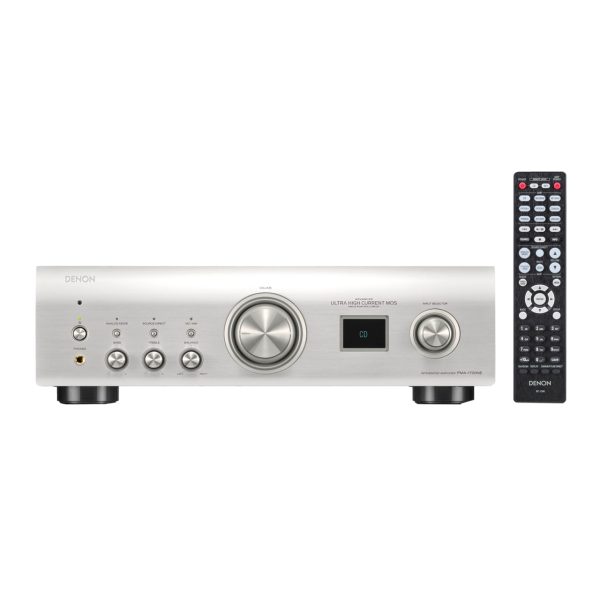

Denon PMA-1700NE Amplifier
Color: Silver
Play Product Video
2 Ch. 140W integrated Amplifier with USB-DAC
SELLING PRICE
$1,899.96
Availability:
In stock
SKU
Denon PMA-1700NE
MSRP: $2,099.00
YOU SAVE: $199.04
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand, so you get a full warranty at no additional cost.
Free shipping in the contiguous U.S.
General
Unit (W x D x H) 434 x 410 x 135mm 17.1 x 16.1 x 5.3in
Net weight 17.6kg 38.8lb
Specifications
Rated Output Power 70W + 70W (8ohm,20Hz-20kHz,THD0.07%)
140W + 140W (4ohm, 1kHz, THD0.7%)
Speaker Impedance A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm
Frequency Response 5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Dumping Factor 100 and over
Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm MC: 200
RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input
MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio PHONO (MM): (89dB)
PHONO (MC): (74dB) CD: (107dB)
Tone Control BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption 295W
at Standby 0.2W TV autoplay off 0.4W TV autoplay on
Audio Feature
Power Amplifier Circuit New UHC-MOS
Single Push Pull (7)
Power Trans Dual El Core
Pre Amplifier Circuit Variable Gain Preamplifier
Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
Source Direct Yes
Analog Amp Mode Yes (button on front panel)
DAC Circuit PCM1795
Digital Processing Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback) Yes
Asyncronous mode (for USB-B input) yes
Isolator (for USB-B input) Yes
Full Isolation
Connectivity
Phono Input Yes (MM / MC) *default=MM
Analog Input (include Phono) / REC Out (RCA) 4/1
(PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)
2 sets of Speaker Output Yes (Bi-wiring)
Speaker Terminal Gold Plated
Headphone Output 1 (Turn off the speaker when inserting headphone)
Remote Control Bus Terminal Yes (mini)
USB B (USB DAC) 1 (Rear)
PCM Sample Rate ~384kHz/32bit
DSD Audio Streaming (DoP) ~11.2MHz
Unit (W x D x H) 434 x 410 x 135mm 17.1 x 16.1 x 5.3in
Net weight 17.6kg 38.8lb
Specifications
Rated Output Power 70W + 70W (8ohm,20Hz-20kHz,THD0.07%)
140W + 140W (4ohm, 1kHz, THD0.7%)
Speaker Impedance A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm
Frequency Response 5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Dumping Factor 100 and over
Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm MC: 200
RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input
MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio PHONO (MM): (89dB)
PHONO (MC): (74dB) CD: (107dB)
Tone Control BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption 295W
at Standby 0.2W TV autoplay off 0.4W TV autoplay on
Audio Feature
Power Amplifier Circuit New UHC-MOS
Single Push Pull (7)
Power Trans Dual El Core
Pre Amplifier Circuit Variable Gain Preamplifier
Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
Source Direct Yes
Analog Amp Mode Yes (button on front panel)
DAC Circuit PCM1795
Digital Processing Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback) Yes
Asyncronous mode (for USB-B input) yes
Isolator (for USB-B input) Yes
Full Isolation
Connectivity
Phono Input Yes (MM / MC) *default=MM
Analog Input (include Phono) / REC Out (RCA) 4/1
(PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)
2 sets of Speaker Output Yes (Bi-wiring)
Speaker Terminal Gold Plated
Headphone Output 1 (Turn off the speaker when inserting headphone)
Remote Control Bus Terminal Yes (mini)
USB B (USB DAC) 1 (Rear)
PCM Sample Rate ~384kHz/32bit
DSD Audio Streaming (DoP) ~11.2MHz
