Brand New

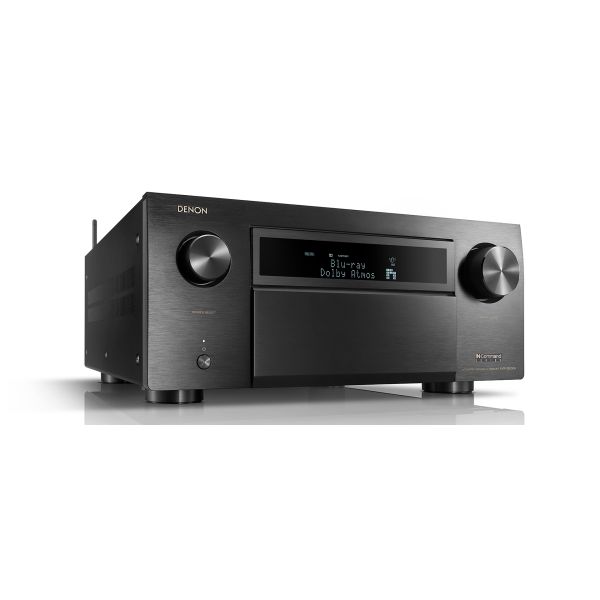

Denon AVR-X8500H - Black
Color: Black
Play Product Video
Home Theater Receiver
SELLING PRICE
$4,199.95
Availability:
In stock
SKU
AVR-X8500H-Black
MSRP: $4,600.00
YOU SAVE: $400.05
SOLD AS: Each
Every single item that we sell is brand new, A-Stock merchandise. That means factory-sealed - not refurbished, not a demo and not a return. We purchase all our items through the authorized dealer network for each brand.
Free shipping in the contiguous U.S.
Denon AVR-X8500H - Silver color
13.2 Network AV Receiver, Discrete Monolithic Power Amplifier, Bluetooth, Wi-Fi, AirPlay. 8 x HDMI inputs/3 x HDMI outputs. DDSC-HD discrete
audio circuitry with AL32 Multi Channel Processing. Dolby Atmos, DTS:X and Auro 3D. 4K full-rate pass-through, 4:4:4 pure color, HDR, Dolby Vision, HLG (Hybrid Log Gamma) compatibility and HDCP2.2 support. ISF certification/calibration for picture. Audyssey MultEQ XT32 setup and room calibration. "HEOS" wireless multi-room technology. Front panel USB input, HiRes Audio, iOS connection sharing. AirPlay compatible, Denon 2016 AVR remote app, ECO mode. 11.2 channel preouts. eARC (Enhanced Audio Return Channel) support via firmware update
Specifications
Audio section
Power amplifier
Rated output:
Front:
150 W + 150 W (8 --/ohms, 20 Hz ? 20 kHz with 0.05 % T.H.D.)
190 W + 190 W (6 --/ohms, 1 kHz with 0.7 % T.H.D.)Cen?ter:
150 W (8 --/ohms, 20 Hz ? 20 kHz with 0.05 % T.H.D.)
190 W (6 --/ohms, 1 kHz with 0.7 % T.H.D.)
Surround:
150 W + 150 W (8 --/ohms, 20 Hz ? 20 kHz with 0.05 % T.H.D.)
190 W + 190 W (6 --/ohms, 1 kHz with 0.7 % T.H.D.)
Surround back / Height1 / Height2 / Height3 / Height4/Front wide:
150 W + 150 W (8 --/ohms, 20 Hz ? 20 kHz with 0.05 % T.H.D.)
190 W + 190 W (6 --/ohms, 1 kHz with 0.7 % T.H.D.)
Dynamic power:
170 W x 2-channel (8 --/ohms)
280 W x 2-channel (4 --/ohms)
Output connectors:
4 / 16 ohms
Analog
Input sensitivity:
200 mV
Frequency response:
10 Hz - 100 kHz ? +1, ?3 dB (Direct mode)
S/N:
102 dB (IHFA weighted, Direct mode)
Dis?tor?tion:
0.005 % (20 Hz - 20 kHz) (Direct mode)
Rated output:
1.2 V
Digital
D/A output:
Rated output ? 2 V (at 0 dB play?back)
Total harmonic distortion 0.008 % (1 kHz, at 0 dB)
S/N ratio ? 102 dB
Dynamic range ? 100 dB
Digital input:
Format Digital audio interface
Phono equalizer
Input sensitivity:
2.5 mV
RIAA deviation:
--1 dB (20 Hz to 20 kHz)
S/N:
74 dB (IHF-A)
Distortion factor:
0.03 % (1 kHz, 3 V)
Video section
Standard video connectors
Input/output level and impedance:
1 Vp-p, 75 --/ohms
Frequency response:
5 Hz - 10 MHz ? 0, ?3 dB
Color component video connector
Input/out?put level and impedance:
Y signal ? 1 Vp-p, 75 --/ohms
PB / CB signal ? 0.7 Vp-p, 75 --/ohms
PR / CR signal ? 0.7 Vp-p, 75 --/ohms
Frequency response:
5 Hz - 60 MHz 0, ?3 dB
Tuner section
[FM]
[AM]
(Note: V at 75 --/ohms, 0 dBf = 1 x 10 -15 W)
Reception frequency range:
87.5 MHz ? 107.9 MHz
520 kHz - 1710 kHz
Effective sensitivity:
1.2 ?V (12.8 dBf)
18 ?V
50 dB sensitivity:
MONO 2.8 V (20.2 dBf)
S/N ratio:
MONO 70 dB (IHFA weighted, Direct mode)
STEREO 67 dB (IHFA weighted, Direct mode)
Distortion:
MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
Wireless LAN section
Network type (wireless LAN standard):
Conforming to IEEE 802.11a/b/g/n
(Wi-Fi compliant) ?1
Security:
WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Used frequency range:
2.4 GHz, 5 GHz
The Wi-Fi CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
Bluetooth section
Communications system:
Bluetooth Specification Version 3.0 + EDR (Enhanced Data Rate)
Transmission power:
Bluetooth Specification Power Class 1
Maximum communication range:
Approx. 98.4 ft/30 m in line of sight 2
Used frequency range:
2.4 GHz
Modulation scheme:
FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles:
A2DP (Advanced Audio Distribution Profile) 1.2
AVRCP (Audio Video Remote Control Profile) 1.5
Corresponding codec:
SBC
Transmission range (A2DP):
20 Hz - 20,000 Hz
The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
Power supply:
AC 120 V, 60 Hz
Power consumption:
900 W
Power consumption in standby mode:
0.1 W
Power consumption in CEC standby mode:
0.5 W
Specifications
Audio section
Power amplifier
Rated output:
Front:
150 W + 150 W (8 --/ohms, 20 Hz ? 20 kHz with 0.05 % T.H.D.)
190 W + 190 W (6 --/ohms, 1 kHz with 0.7 % T.H.D.)Cen?ter:
150 W (8 --/ohms, 20 Hz ? 20 kHz with 0.05 % T.H.D.)
190 W (6 --/ohms, 1 kHz with 0.7 % T.H.D.)
Surround:
150 W + 150 W (8 --/ohms, 20 Hz ? 20 kHz with 0.05 % T.H.D.)
190 W + 190 W (6 --/ohms, 1 kHz with 0.7 % T.H.D.)
Surround back / Height1 / Height2 / Height3 / Height4/Front wide:
150 W + 150 W (8 --/ohms, 20 Hz ? 20 kHz with 0.05 % T.H.D.)
190 W + 190 W (6 --/ohms, 1 kHz with 0.7 % T.H.D.)
Dynamic power:
170 W x 2-channel (8 --/ohms)
280 W x 2-channel (4 --/ohms)
Output connectors:
4 / 16 ohms
Analog
Input sensitivity:
200 mV
Frequency response:
10 Hz - 100 kHz ? +1, ?3 dB (Direct mode)
S/N:
102 dB (IHFA weighted, Direct mode)
Dis?tor?tion:
0.005 % (20 Hz - 20 kHz) (Direct mode)
Rated output:
1.2 V
Digital
D/A output:
Rated output ? 2 V (at 0 dB play?back)
Total harmonic distortion 0.008 % (1 kHz, at 0 dB)
S/N ratio ? 102 dB
Dynamic range ? 100 dB
Digital input:
Format Digital audio interface
Phono equalizer
Input sensitivity:
2.5 mV
RIAA deviation:
--1 dB (20 Hz to 20 kHz)
S/N:
74 dB (IHF-A)
Distortion factor:
0.03 % (1 kHz, 3 V)
Video section
Standard video connectors
Input/output level and impedance:
1 Vp-p, 75 --/ohms
Frequency response:
5 Hz - 10 MHz ? 0, ?3 dB
Color component video connector
Input/out?put level and impedance:
Y signal ? 1 Vp-p, 75 --/ohms
PB / CB signal ? 0.7 Vp-p, 75 --/ohms
PR / CR signal ? 0.7 Vp-p, 75 --/ohms
Frequency response:
5 Hz - 60 MHz 0, ?3 dB
Tuner section
[FM]
[AM]
(Note: V at 75 --/ohms, 0 dBf = 1 x 10 -15 W)
Reception frequency range:
87.5 MHz ? 107.9 MHz
520 kHz - 1710 kHz
Effective sensitivity:
1.2 ?V (12.8 dBf)
18 ?V
50 dB sensitivity:
MONO 2.8 V (20.2 dBf)
S/N ratio:
MONO 70 dB (IHFA weighted, Direct mode)
STEREO 67 dB (IHFA weighted, Direct mode)
Distortion:
MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
Wireless LAN section
Network type (wireless LAN standard):
Conforming to IEEE 802.11a/b/g/n
(Wi-Fi compliant) ?1
Security:
WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Used frequency range:
2.4 GHz, 5 GHz
The Wi-Fi CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
Bluetooth section
Communications system:
Bluetooth Specification Version 3.0 + EDR (Enhanced Data Rate)
Transmission power:
Bluetooth Specification Power Class 1
Maximum communication range:
Approx. 98.4 ft/30 m in line of sight 2
Used frequency range:
2.4 GHz
Modulation scheme:
FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles:
A2DP (Advanced Audio Distribution Profile) 1.2
AVRCP (Audio Video Remote Control Profile) 1.5
Corresponding codec:
SBC
Transmission range (A2DP):
20 Hz - 20,000 Hz
The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
Power supply:
AC 120 V, 60 Hz
Power consumption:
900 W
Power consumption in standby mode:
0.1 W
Power consumption in CEC standby mode:
0.5 W
